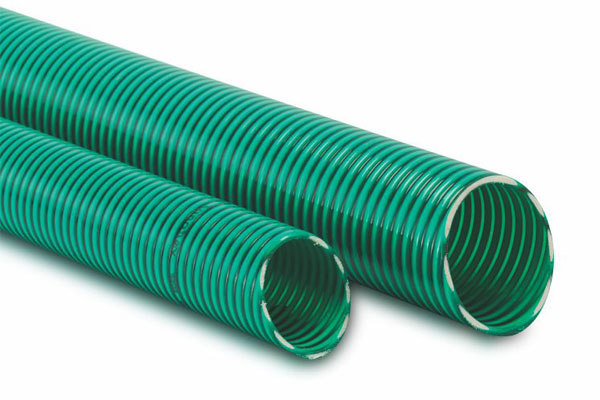

| Applications | Medium Duty Suction & Delivery of water for irrigation purpose in agriculture, saline water, light acids, alkalies and other chemicals except solvents. |
| Key Features | Light in weight Flexibility is retained – no cracks or brittleness No kinking, bulging or bursting even in most rigorous working conditions Excellent resistance to high vacuum/pressure |
| Available sizes | 20 mm to 100 mm I.D. |
| Pressure at 30°C | Working Pressure 3.5kg/cm² to 7kg/cm²
Bursting Pressure 11kg/cm² to 24 kg/cm² |
| Colour | Green |
Composition: Universal Plastic Agency PVC Hoses are made by adequate reinforcement secured by proper placement of hard spirals of rigid PVC in soft PVC wall that imparts strength and flexibility.
Standard Chart By Size
| Normal Size | Diameter | Bending Radius | Pressure (at 30°C) | Standard Lengths | |||
|---|---|---|---|---|---|---|---|
| Inches | mm | ID mm | OD mm | mm | Working kg/cm² | Bursting kg/cm² | mtrs. |
| ¾ | 20 | 19.0 ± 0.5 | 23.6 ± 1.0 | 45 | 7.0 | 24.0 | 30/50 |
| 1 | 25 | 25.4 ± 0.5 | 30.0 ± 1.0 | 55 | 7.0 | 23.0 | 30/50 |
| 1¼ | 30 | 31.8 ± 0.5 | 36.8 ± 1.0 | 75 | 6.5 | 20.0 | 30/50 |
| 1½ | 40 | 38.0 ± 0.5 | 43.3 ± 1.0 | 95 | 5.0 | 16.0 | 30/50 |
| 2 | 50 | 50.8 ± 0.5 | 57.8 ± 1.5 | 122 | 4.0 | 16.0 | 30/45/50 |
| 2½ | 65 | 63.5 ± 1.0 | 72.0 ± 1.5 | 160 | 4.0 | 16.0 | 30/45 |
| 3 | 75 | 76.2 ± 1.0 | 85.0 ± 1.5 | 272 | 3.5 | 15.0 | 30/36 |
| 4 | 100 | 101.2 ± 1.0 | 112.2 ± 2.0 | 290 | 3.5 | 11.0 | 15/18/30 |
PVC Heavy Duty Hose
Composition: Universal Plastic Agency PVC Hoses are made by adequate reinforcement secured by proper placement of hard spirals of rigid PVC in soft PVC wall that imparts strength and flexibility.
| Applications | Heavy Duty Suction and Delivery of abrasive materials in industries like coal & mineral in mines, stone & lime in quarries, shipping, sewerage disposal, aqua culture, paper mills, cement, chemicals, petrochemicals, oil exploration, construction, fire-fighting equipments, etc. |
| Key Features | Abrasion resistant No kinking, bulging or bursting even in the most rigorous working conditions Excellent resistance to high vacuum/pressure and external impact |
| Available sizes | 25 mm to 300 mm I.D. |
| Pressure at 30°C | Working Pressure 2.5kg/cm² to 8kg/cm² Bursting Pressure 6kg/cm² to 25kg/cm² |
| Colour | Grey |
Standard Chart By Size
| Normal Size | Diameter | Bending Radius | Pressure (at 30°C) | Standard Lengths | |||
|---|---|---|---|---|---|---|---|
| Inches | mm | ID mm | OD mm | mm | Working kg/cm² | Bursting kg/cm² | mtrs. |
| 1 | 25 | 25.4 ± 0.5 | 31.5 ± 0.5 | 48 | 8 | 25.0 | 30 |
| 1¼ | 30 | 31.8 ± 0.5 | 36.8 ± 0.5 | 68 | 7 | 21.0 | 30 |
| 1½ | 40 | 38.0 ± 0.5 | 46.3 ± 1.5 | 70 | 5.5 | 18.0 | 30 |
| 2 | 50 | 50.8 ± 0.5 | 60.8 ± 1.5 | 100 | 4.5 | 18.0 | 30 |
| 2½ | 65 | 63.5 ± 1.0 | 74.5 ± 1.5 | 120 | 4.5 | 18.0 | 30 |
| 3 | 75 | 76.2 ± 1.0 | 87.2 ± 1.5 | 155 | 4.5 | 18.0 | 30 |
| 4 | 100 | 101.2 ± 1.5 | 114.2 ± 2.0 | 213 | 4.0 | 14.0 | 15/18/30 |
| 5 | 125 | 127.0 ± 1.5 | 141.0 ± 2.0 | 230 | 3.0 | 10.0 | 15/18 |
| 6 | 150 | 152.4 ± 1.5 | 169.4 ± 2.0 | 375 | 2.5 | 9.0 | 15/18 |
| 8 | 200 | 203.2 ± 2.0 | 224.4 ± 2.0 | 600 | 2.5 | 8.0 | 4.5/6 |
| 10 | 250 | 254.2 ± 2.0 | 284.4 ± 2.0 | 1000 | 2.5 | 8.0 | 4.5/6 |
| 12 | 300 | 300.0 ± 2.0 | 340.0 ± 2.0 | 1000 | 2.5 | 6.0 | 4.5/6 |
Recommended Maximum working temperature: 60/70°C
PVC Duct Hose
Composition: Universal Plastic Agency PVC Hoses are made by adequate reinforcement secured by proper placement of hard spirals of rigid PVC in soft PVC wall that imparts strength and flexibility.
| Applications | Light duty Suction and Delivery, Conveying air and gases, Cold and warm air installation, cooling of motors, Heating Ventilating and Air Conditioning systems, Fume removal, Handling Dust and Light materials, Vacuum Cleaning equipment, Transporting wheat and other cereals, Transporting powder, gases, liquids. |
| Key Features | Very light in weight. Extra flexible, hence easy to install. Rigid outer reinforcement, hence easy handling |
| Available sizes | 16 mm to 300 mm I.D. |
| Also Available | Duct Hose – Heavy with square type corrugated outer surface. |
| Colour | Grey |
Standard Chart By Size
| Nominal Size | Bending Radius | Standard Lengths | |||
|---|---|---|---|---|---|
| Inches | mm | ID mm | OD mm | mm | mtrs. |
| ½ | 16 | 16.0 | 22.0 | 22 | 30 |
| ¾ | 22 | 21.0 | 28.6 | 35 | 30 |
| 1 | 25 | 25.4 | 32.10 | 45 | 30 |
| 1¼ | 30 | 31.8 | 38.64 | 50 | 30 |
| 1½ | 40 | 38.0 | 45.00 | 55 | 30 |
| 2 | 50 | 50.8 | 57.20 | 65 | 30 |
| 2½ | 60 | 60.5 | 68.50 | 75 | 30 |
| 3 | 75 | 76.5 | 83.54 | 95 | 30 |
| 4 | 100 | 101.2 | 108.94 | 125 | 30 |
| 5 | 125 | 127.0 | 135.20 | 140 | 15 |
| 6 | 150 | 152.4 | 161.10 | 205 | 15 |
| 8 | 200 | 204.0 | 214.40 | 270 | 15 |
| 10 | 250 | 253.0 | 264.00 | 370 | 10 |
| 12 | 300 | 305.0 | 320.00 | 370 | 10 |
Recommended Maximum working temperature: 60/70°C

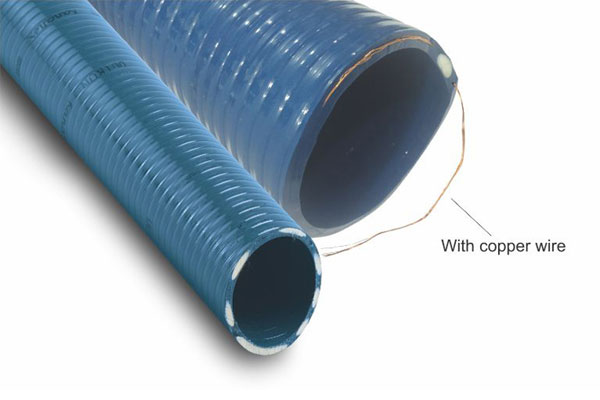

Oil Hose With Copper Wire
| Applications | Suction and Discharge of oils, conveying Diesel fuels, Kerosene, Liquid Petroleum products, Lubricating oils, Mineral oils, Light oils, Transformer oils |
| Key Features | More flexible than rubber hoses Made from special polymer compound that provides resistance to oil and other chemicals No kinking, bulging or bursting even in the most rigorous working conditions No Aging Excellent resistance to high vacuum / pressure, external impact High flow rate due to smooth inside surface leading to minimum friction loss and saving energy |
| Also Available with Copper Wire | Oil hose provided with copper wires inlaid in the wall, it allows suction and discharge of highly inflammable products as copper wire provides for conduction of static charges generated. |
| Also Sizes | 25 mm to 100 mm I.D. |
|
Pressure at 30°C |
Working Pressure 4kg/cm² to 8kg/cm² Bursting Pressure 14kg/cm² to 22kg/cm² |
| Colour | Blue |
Standard Chart By Size
| Nominal Size | Diameter | Bending Radius | Pressure (at 30°C) | Standard Lengths | |||
|---|---|---|---|---|---|---|---|
| Inches | mm | ID mm | OD mm | mm | Working kg/cm² | Bursting kg/cm² | mtrs. |
| 1 | 25 | 25.4 ± 0.5 | 31.5 ± 1.0 | 48 | 8.0 | 22 | 30 |
| 1¼ | 30 | 31.8 ± 0.5 | 39.0 ± 1.0 | 68 | 7.0 | 21 | 30 |
| 1½ | 40 | 38.1 ± 0.5 | 46.4 ± 1.0 | 70 | 5.5 | 18 | 30 |
| 2 | 50 | 50.8 ± 0.5 | 60.8 ± 1.5 | 100 | 4.5 | 18 | 30 |
| 2½ | 65 | 63.5 ± 1.0 | 74.5 ± 1.5 | 120 | 4.5 | 18 | 30 |
| 3 | 75 | 76.2 ± 1.0 | 87.2 ± 1.5 | 155 | 4.5 | 18 | 30 |
| 4 | 100 | 101.2 ± 1.0 | 114.2 ± 1.5 | 213 | 4.0 | 14 | 15/18/30 |
Recommended Maximum working temperature: 60/70°C

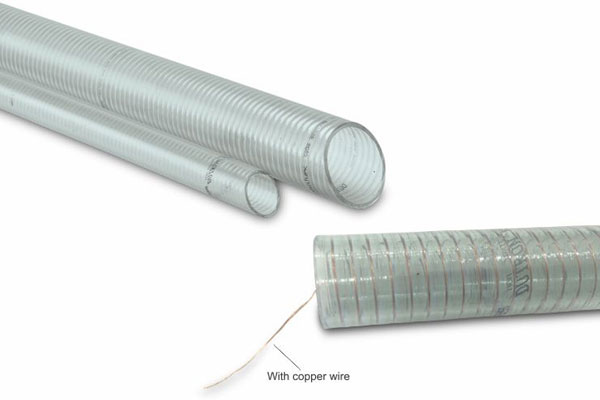

UPA 25 mm Non-Toxic Hose (with Copper Wire)
| Applications | Suction and Discharge of beer, wine, milk, beverages, ice-cream, chocolates, peppermint, cereals and other food items. |
| Key Features | Made from special non-toxic ingredients, that provide safe use in food products No kinking, bulging or bursting even in the most rigorous working conditions No Aging Excellent resistance to high vacuum / pressure and external impact Total transparency allows one better visualization of the ticket of the products Its total smooth internal surface does not allow setting of residues, preventing contamination |
|
Also Available with Copper Wire |
In special sizes and non-toxic flexible hose with copper conductive wire for conduction of antistatic charges generated. |
|
Available Sizes |
25 mm to 100 mm I.D. |
| Pressure at 30°C | Working Pressure 3.5kg/cm² to 7kg/cm² Bursting Pressure 11kg/cm² to 23kg/cm² |
|
Colour |
All Transparent |
Standard Chart By Size
| Nominal Size | Diameter | Bending Radius | Pressure (at 30°C) | Standard Lengths | |||
|---|---|---|---|---|---|---|---|
| Inches | mm | ID mm | OD mm | mm | Working kg/cm² | Bursting kg/cm² | mtrs. |
| 1 | 25 | 25.4 ± 0.5 | 30.0 ± 1.0 | 55 | 7.0 | 23 | 30/50 |
| 1¼ | 30 | 31.8 ± 0.5 | 36.8 ± 1.0 | 75 | 6.5 | 20 | 30/50 |
| 1½ | 40 | 38.0 ± 0.5 | 43.3 ± 1.0 | 95 | 5.0 | 16 | 30/50 |
| 2 | 50 | 50.8 ± 1.5 | 57.8 ± 1.0 | 122 | 4.0 | 16 | 30 |
| 2½ | 65 | 63.5 ± 1.0 | 72.5 ± 1.5 | 160 | 4.0 | 16 | 30 |
| 3 | 75 | 76.2 ± 1.0 | 85.2 ± 1.5 | 272 | 3.5 | 15 | 30 |
| 4 | 100 | 101.2 ± 1.0 | 112.2 ± 1.5 | 290 | 3.5 | 11 | 15/18/30 |

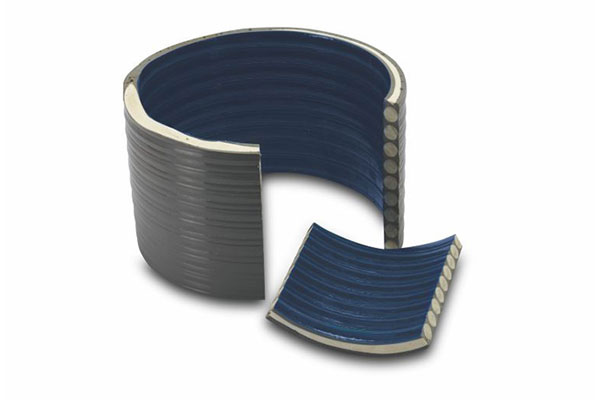

High Abrasion Resistance Hose with PU Lining
| Applications | Heavy Duty Suction and Delivery of highly abrasive materials such as sand, coal, stone, lime, mud, ready mix concrete. |
| Key Features | PU Layer on inside surface for higher abrasion resistance No Kinking, bulging or busting even in the most serious working conditions Excellent resistance to high vacuum / pressure and external impact |
| Available sizes | 40 mm to 300 mm I.D. |
| Pressure at 30°C | Working Pressure 2.5kg/cm² to 8kg/cm² Bursting Pressure 6kg/cm² to 25kg/cm² |
Composition: Universal Plastic Agency PVC Hoses are made by adequate reinforcement secured by proper placement of hard spirals of rigid PVC in soft PVC wall that imparts strength and flexibility.
Recommended Maximum working temperature: 60/70°C
