Universal Plastic Agency is a premier manufacturer and supplier based in Ahmedabad, providing high-performance CPVC pipes & fittings. Engineered for both hot and cold water distribution, our products are crafted from premium-grade raw materials to guarantee exceptional thermal stability, structural strength, and an extended service life.
We cater to a diverse range of sectors, delivering reliable plumbing solutions to residential, commercial, industrial, and infrastructure projects across Gujarat and throughout India.

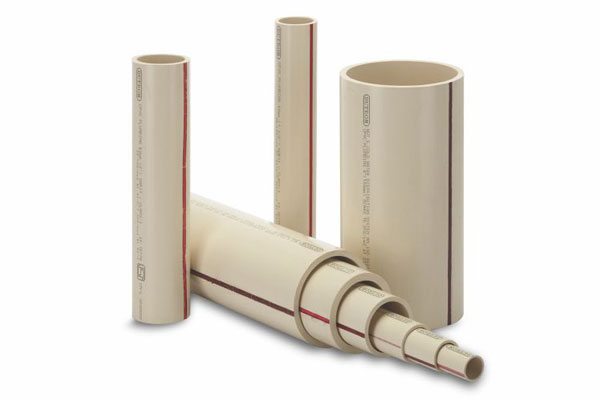

High-Performance CPVC Piping Systems
Our CPVC systems are the industry standard for modern plumbing. Known for their ability to withstand extreme temperatures and resist corrosion, these pipes feature a smooth internal bore that prevents scaling and ensures consistent water flow.
As a trusted CPVC pipe supplier in Ahmedabad, we offer standard as well as customized CPVC pipe and fitting solutions.
Standard Chart By Size
| Nominal Pipe Size | Outer Diameter in (mm) | SDR 11 | SDR 13.5 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Wall Thickness in (mm) | Working Pressure at | Wall Thickness in (mm) | Working Pressure at | ||||||||
| 23°C | 82°C | 23°C | 82°C | ||||||||
| inch | mm | Average | Tolerance | Minimum | Tolerance | kg/cm² | Minimum | Tolerance | kg/cm² | ||
| ½ | 15 | 0.625 (15.90) |
±0.003 (±0.08) |
0.068 (1.73) |
±0.020 (±0.51) |
28.1 | 7.0 | 0.055 (1.40) |
±0.020 (±0.51) |
22.5 | 5.6 |
| ¾ | 20 | 0.875 (22.20) |
±0.003 (±0.08) |
0.080 (2.03) |
±0.020 (±0.51) |
28.1 | 7.0 | 0.065 1.65 |
±0.020 (±0.51) |
22.5 | 5.6 |
| 1 | 25 | 1.125 (28.60) |
±0.003 (±0.08) |
0.102 (2.59) |
±0.020 (±0.51) |
28.1 | 7.0 | 0.083 (2.12) |
±0.020 (±0.51) |
22.5 | 5.6 |
| 1¼ | 32 | 1.375 (34.90) |
±0.003 (±0.08) |
0.125 (3.18) |
±0.020 (±0.51) |
28.1 | 7.0 | 0.102 (2.59) |
±0.020 (±0.51) |
22.5 | 5.6 |
| 1½ | 40 | 1.625 (41.30) |
±0.004 (±0.010) |
0.148 (3.76) |
±0.020 (±0.51) |
28.1 | 7.0 | 0.120 (3.06) |
±0.020 (±0.51) |
22.5 | 5.6 |
| 2 | 50 | 2.125 (54) |
±0.004 (±0.010) |
0.193 (4.90) |
±0.023 (±0.58) |
28.1 | 7.0 | 0.157 (4.00) |
±0.023 (±0.58) |
22.5 | 5.6 |
| Size mm (inch) | Outer Diameter in (mm) | Schedule 40 Wall Thickness in (mm) |
Schedule 80 Wall Thickness in (mm) |
|---|---|---|---|
| 65 (2.1/2”) | 73.0 ± 0.18 (72.82 – 73.18) | 5.16 – 5.77 | 7.01 – 7.85 |
| 80 (3”) | 88.9 ± 0.20 (88.7 – 89.1) | 5.49 – 6.15 | 7.62 – 8.53 |
| 100 (4”) | 114.3 ± 0.23 (114.07 – 114.53) | 6.02 – 6.73 | 8.56 – 9.58 |
| 150 (6”) | 168.3 ± 0.28 (168.02 – 168.58) | 7.11 – 7.97 | 10.97 – 12.29 |
FAQ – CPVC Pipes & Fittings
What are CPVC pipes used for?
CPVC pipes are primarily used for hot and cold water plumbing systems in residential, commercial, and industrial applications.
Are CPVC pipes suitable for hot water?
Yes, CPVC pipes are designed to handle high-temperature hot water, making them ideal for geyser and boiler connections.
Do you supply CPVC fittings along with pipes?
Yes, we supply a complete range of CPVC pipes and fittings, including elbows, tees, couplers, and valves.
Are CPVC pipes resistant to corrosion and chemicals?
Yes, CPVC pipes offer excellent resistance to corrosion, scaling, and many chemicals.
Can CPVC pipes be used in industrial applications?
Yes, CPVC pipes and fittings are suitable for various industrial fluid handling applications.
Where do you supply CPVC pipes and fittings?
We distribute our CPVC products across Ahmedabad, Gujarat, and all major urban centers in India.
