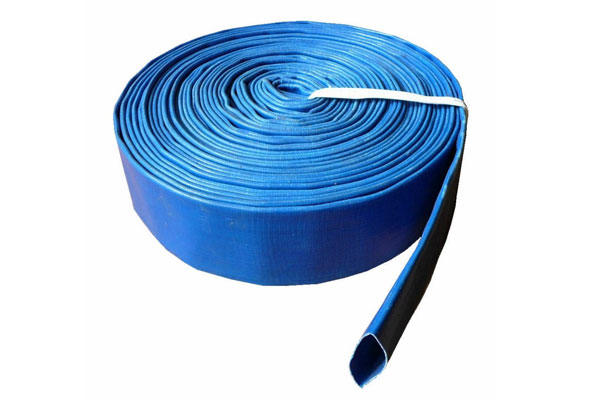

Composition: Made by reinforcement (Braiding) of synthetic yarn in between two or more layers of Soft PVC. The yarn is reinforced in crosswise as well as in longitudinal directions. This provides high pressure carrying capacity as well as good flexibility.

Applications

As delivery/discharge hose, in agriculture, at construction sites, mines and quarries, marine use in ships, transferring corrosive chemicals and liquids etc.
Key Features Corrosion Free.
Requires minimum storage space.
Tough and puncture proof.
Remains soft and pliable even undersub-zero temperatures.
Available sizes

25 mm to 300 mm I.D.
Pressure at 30°C Working Pressure 3kg/cm² to 6kg/cm²
Colour Blue

Standard Chart By Size

Nominal size mm Inside dia. mm Wall Thickness mm Working Pressure kg/cm² Standard Lengths mtrs.
25 26 ± 1 1.0 ± 0.1 6.0 50/60/100
40 41 ± 1 1.0 ± 0.1 6.0 50/60/100
50 53 ± 1 1.1 ± 0.1 6.0 50/60/100
65 66 ± 1 1.2 ± 0.1 5.0 50/60/100
75 82 ± 1 1.2 ± 0.1 5.0 50/60/100
100 104 ± 2 1.2 ± 0.1 4.0 50/60/100
150 154 ± 3 1.8 ± 0.1 4.0 50/60/100
200 204 ± 3 2.3 ± 0.2 3.0 50/60/100
250 257 ± 3 2.5 ± 0.2 3.0 50/60/100
300 310 ± 3 2.7 ± 0.3 3.0 50/100
