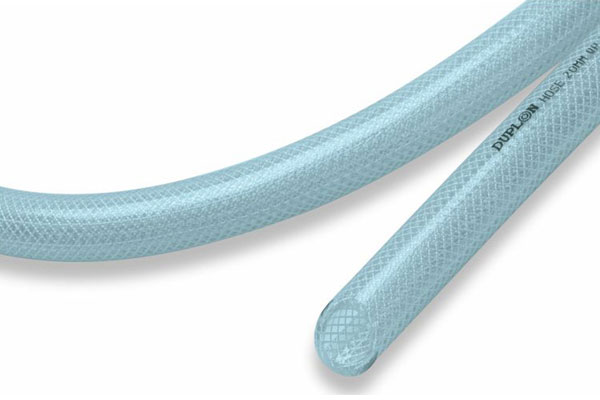

| Applications | Transfer of High Pressure air in Industries, with compressor and pneumatic operations, Rock drilling, Road digging, Air Stations for vehicle tires, heavy duty water, chemical and gases. |
| Key Features | Superior to conventional rubber hoses Light weight Withstands High Pressure Rodent Proof Crush and kink resistant Resistant to oil, light chemicals and moisture |
| Available sizes | 5 mm to 50 mm I.D. |
| Pressure at 30°C | Working Pressure 10kg/cm² to 25kg/cm² |
| Also Available | Milky White Colour |
Composition: Made by reinforcement (Braiding) of synthetic yarn in between two or more layers of Soft PVC. The yarn is reinforced in crosswise as well as in longitudinal directions. This provides high pressure carrying capacity as well as good flexibility.
Standard Chart By Size
| Size in mm | Wall Thickness in mm | Working pressure at 30°C kg/cm² | Standard Length mtrs. |
|---|---|---|---|
| 5 | 2.5 | 15 | 50/100 |
| 6 | 3 | 25 | 50/100 |
| 8 | 3 | 25 | 50/100 |
| 10 | 3.5 | 25 | 50/100 |
| 12 | 3.5 | 20 | 50/100/200 |
| 15 | 3.5 | 20 | 50/100 |
| 20 | 4 | 20 | 50/100/200 |
| 25 | 4.8 | 15 | 50/100 |
| 30 | 4.8 | 18 | 50/100 |
| 40 | 5 | 15 | 30/50 |
| 50 | 6 | 10 | 30/50 |

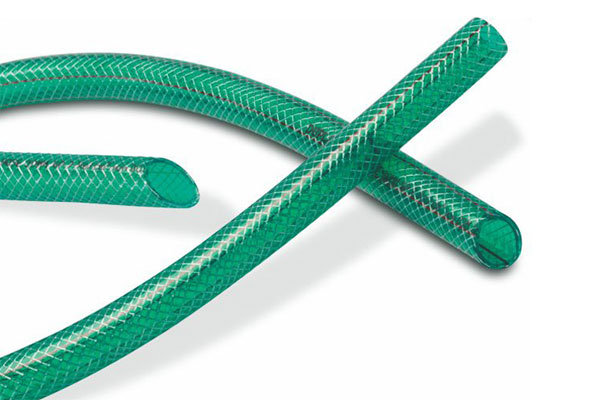

PVC Garden Green Water Hose
| Applications | Water conveying for irrigation projects and gardening. |
| Key Features | Superior quality Comparatively higher pressure rating Kink resistant |
| Available sizes | 12 mm to 25 mm I.D. |
| Pressure at 30°C | Working Pressure 5kg/cm² to 7kg/cm² |
| Colour | Green – Transparent combination with Red Horizontal yarn lining. |
Composition: Made by reinforcement (Braiding) of synthetic yarn in between two or more layers of Soft PVC. The yarn is reinforced in crosswise as well as in longitudinal directions. This provides high pressure carrying capacity as well as good flexibility.
Standard Chart By Size
| Size in mm | Wall Thickness in mm | Working pressure at 30°C kg/cm² | Standard Length mtrs. |
|---|---|---|---|
| 12 | 2 | 7 | 30/50/100 |
| 20 | 2.5 | 7 | 30/50/100 |
| 25 | 3 | 5 | 30/50/100 |
GARDEN HOSE (GREEN)
| Applications | Water conveying for irrigation projects and gardening. |
| Key Features | Lower weight Economical Kink resistant |
| Available sizes | 12 mm to 25 mm I.D. |
| Pressure at 30°C | Working Pressure 5kg/cm² to 7kg/cm² |
| Colour | Green – Transparent combination. |
Composition: Made by reinforcement (Braiding) of synthetic yarn in between two or more layers of Soft PVC. The yarn is reinforced in crosswise as well as in longitudinal directions. This provides high pressure carrying capacity as well as good flexibility.
Standard Chart By Size
| Size in mm | Wall Thickness in mm | Working pressure at 30°C kg/cm² | Standard Length mtrs. |
|---|---|---|---|
| 12 | 1.7 | 7 | 30/50/100 |
| 20 | 2 | 7 | 30/50/100 |
| 25 | 2.7 | 5 | 30/50/100 |
CONSTRUCTION WATER HOSE (YELLOW)
| Applications | Conveying of water for engineering, construction and industrial development sites. |
| Key Features | UV Resistant More tough hence longer service life Kink resistant |
| Available sizes | 12 mm to 50 mm I.D. |
| Pressure at 30°C | Working Pressure 5kg/cm² to 7kg/cm² |
| Colour | Yellow – Black combination |
Composition: Made by reinforcement (Braiding) of synthetic yarn in between two or more layers of Soft PVC. The yarn is reinforced in crosswise as well as in longitudinal directions. This provides high pressure carrying capacity as well as good flexibility.
Standard Chart By Size
| Size in mm | Wall Thickness in mm | Working pressure at 30°C kg/cm² | Standard Length mtrs. |
|---|---|---|---|
| 12 | 2 | 7 | 25/30/50 |
| 20 | 2.5 | 7 | 25/30/50 |
| 25 | 3 | 5 | 25/30/50 |
| 30 | 3.8 | 5 | 30/50 |
| 40 | 4.5 | 5 | 30 |
| 50 | 5 | 5 | 30 |

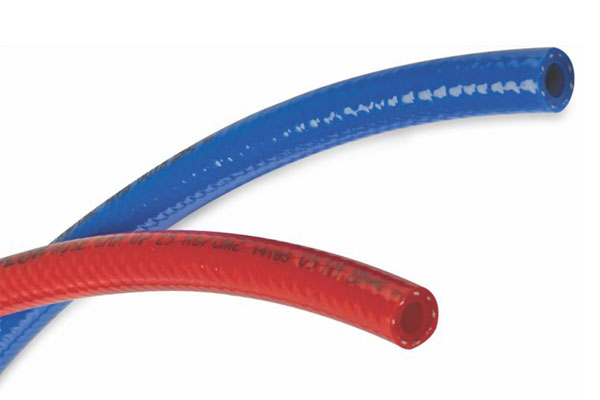

Welding Hose Red & Blue
Composition: Made by reinforcement (Braiding) of synthetic yarn in between two or more layers of Soft PVC. The yarn is reinforced in crosswise as well as in longitudinal directions. This provides high pressure carrying capacity as well as good flexibility.
| Applications | Transfer of High Pressure air in Industries, with compressor and pneumatic operations, Rock drilling, Road digging, Air Stations for vehicle tires, heavy duty water, chemical and gases. |
| Key Features | Light Weight Superior to conventional rubber hoses Separate red and blue colors for easy identification |
| Available sizes | 6 mm to 12 mm I.D. |
| Pressure at 30°C | Working Pressure 20 kg/cm² to 25 kg/cm² |
| Colour | Red (Acetylene), Blue (Oxygen) |
Standard Chart By Size
| Size in mm | Wall Thickness in mm | Working pressure at 30°C kg/cm² | Standard Length mtrs. |
|---|---|---|---|
| 6 | 3 | 25 | 50/100 |
| 8 | 3 | 25 | 50/100 |
| 10 | 3.5 | 25 | 50/100 |
| 12 | 3.5 | 20 | 50/100 |

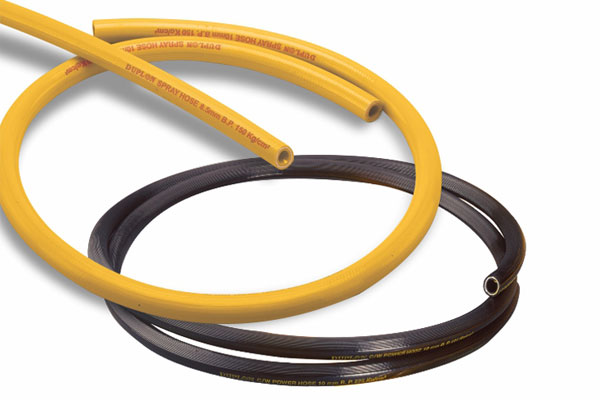

SPRAY HOSE AND CAR WASHING POWER HOSE
Composition: Made by reinforcement (Braiding) of synthetic yarn in between two or more layers of Soft PVC. The yarn is reinforced in crosswise as well as in longitudinal directions. This provides high pressure carrying capacity as well as good flexibility.
| Applications | Pesticide, insecticide, fungicide and weeding spraying, High pressure washing of vehicles in service stations, High pressure pneumatic lines in mines, compressors, excavators etc. |
| Key Features | Unique technology First and only product made in India of this kind Made by full weaving of synthetic yarn in between two thermoplastic layers Very light in weight Economical, yet superior quality Special material for Car Washing Power Hose to withstand oil/grease contamination |
| Also Available | Hose with Factory fitted brass couplings/hose barb crimped at both ends for ready-to-use applications. |
| Available Sizes | 8.5 mm to 12 mm I.D. |
|
Pressure at 30°C |
Spray Hose – Bursting Pressure 120kg/cm² to 150kg/cm²Car Washing Power Hose- Bursting Pressure 200kg/cm² to 225kg/cm² |
| Colour | Spray Hose – Golden Yellow. Car Washing Power Hose – Black. |
Standard Chart By Size – Spray Hose
| Size | I.D (mm) | O.D (mm) | Bursting Pressure at 30°C | Standard Packing |
|---|---|---|---|---|
| 8.5 mm | 8.5 | 14.5 | 150 kg/cm² | 3 x 60 / 2 x 100 / 1 x 200 |
| 10 mm | 10 | 16 | 150 kg/cm² | 3 x 60 / 2 x 100 / 1 x 200 |
| 12 mm | 12 | 19 | 120 kg/cm² | 3 x 60 / 2 x 100 / 1 x 200 |
| 20 mm | 20 | 28.2 | 100 kg/cm² | 2 x 60 / 1 x 100 / 1 x 200 |
Standard Chart By Size – Car Washing Power Hose
| Size | I.D (mm) | O.D (mm) | Pressure at 30°C | Standard Packing | |
|---|---|---|---|---|---|
| Working | Bursting | ||||
| 8 mm | 8 | 13 | 70 kg/cm² | 250 kg/cm² | 2 x 60 / 1 x 100 |
| 10 mm | 10 | 15.5 | 60 kg/cm² | 225 kg/cm² | 2 x 60 / 1 x 100 |
| 12 mm | 12 | 17.5 | 60 kg/cm² | 200 kg/cm² | 2 x 60 / 1 x 100 |
POWER SPRAY HOSE
Composition: Made by reinforcement (Braiding) of synthetic yarn in between two or more layers of Soft PVC. The yarn is reinforced in crosswise as well as in longitudinal directions. This provides high pressure carrying capacity as well as good flexibility.
| Applications | Very high pressure spraying of pesticide, fungicide, insecticide and weeding applications. |
| Key Features | Unique technology First and only product made in India of this kind Made by full weaving of synthetic yarn in between two thermoplastic layers Very light weight Economical, yet superior quality Very high pressure carrying capacity Better abrasion resistance Longer life than Spray Hose |
| Pressure at 30°C | Bursting Pressure 225kg/cm² |
| Available Sizes | 8.5 mm I.D. |
|
Colour |
Orange |
Standard Chart By Size
| Size in mm | O.D mm | Working pressure at 30°C kg/cm² | Standard Length mtrs. |
|---|---|---|---|
| 8.5 | 14.5 | 225 | 4 x 50 / 2 x 100 / 1 x 200 |
ROCK DRILL HOSE
Composition: Made by reinforcement (Braiding) of synthetic yarn in between two or more layers of Soft PVC. The yarn is reinforced in crosswise as well as in longitudinal directions. This provides high pressure carrying capacity as well as good flexibility.
| Applications | Heavy duty pneumatic rock drilling applications in quarries, marble/granite mines, drilling in hard surfaces like road, concrete etc. |
| Key Features | Unique technology First and only product made in India of this kind Made by full weaving of synthetic yarn in between two thermoplastic layers Very light weight Economical, yet superior quality |
| Pressure at 30°C | Bursting Pressure 90kg/cm² to 100kg/cm² |
| Available Sizes | 20 mm to 25 mm I.D. |
|
Colour |
Golden Yellow |
Standard Chart By Size
| Size in mm | O.D mm | Bursting pressure at 30°C kg/cm² | Standard Length mtrs. |
|---|---|---|---|
| 20 | 28.2 | 100 | 50/100 |
| 25 | 35 | 90 | 50/100 |

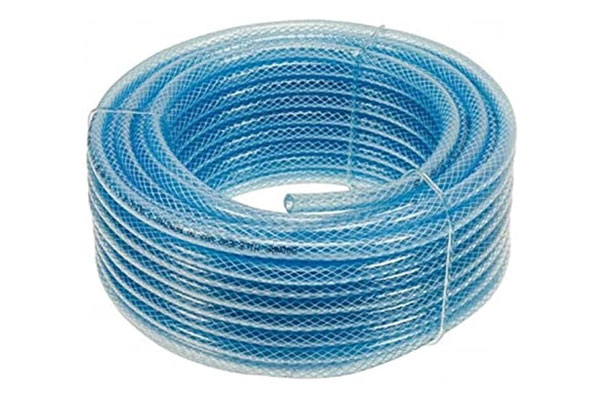

Super Spray Car Washing Hose, Braided Hose
| Applications | Pesticide, insecticide, fungicide and weeding spraying. Pressure washing of vehicles in service stations. |
| Key Features | Made with double braiding to provide extra strength. Superior and light weight compared to rubber hoses. Special material for Car Washing Hose to withstand oil and grease contamination. |
|
Available Sizes |
|
|
Pressure at 30°C |
Working Pressure 30kg/cm² to 40kg/cm² |
| Colour | Super Spray Hose – Yellow. Car Washing Hose – Black. |
Composition: Made by reinforcement (Braiding) of synthetic yarn in between two or more layers of Soft PVC. The yarn is reinforced in crosswise as well as in longitudinal directions. This provides high pressure carrying capacity as well as good flexibility.
Standard Chart By Size
| Size in mm | Wall Thickness in mm | Working pressure at 30°C kg/cm² | Standard Length mtrs. |
|---|---|---|---|
| 10 | 4.0 | 40 | 60/100/200 |
| 12 | 4.5 | 30 | 60/100/200 |

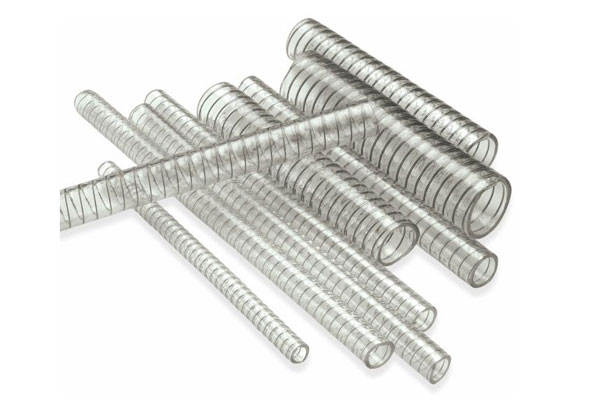

Transparent PVC Steel Wire Hose
| Applications | Transfer of High Pressure air in Industries, with compressor and pneumatic operations, Rock drilling, Road digging, Air Stations for vehicle tires, heavy duty water, chemical and gases. |
| Key Features | Superior to conventional rubber hoses. Light weight. Withstands High Pressure. Rodent Proof. Crush and kink resistant. Resistant to oil, light chemicals and moisture. |
| Available sizes | 5 mm to 50 mm I.D. |
| Pressure at 30°C | Working Pressure 10kg/cm² to 25kg/cm² |
| Also Available | Milky White Colour |
Composition: Universal Plastic Agency PVC Hoses are made by adequate reinforcement secured by proper placement of hard spirals of rigid PVC in soft PVC wall that imparts strength and flexibility.
Standard Chart By Size
| Size in mm | I.D mm | O.D mm | Wall Thickness in mm | Working Pressure @ 30°C (kg/cm²) | Standard Length mtrs. |
|---|---|---|---|---|---|
| 12 | 12.7 | 18.7 | 3.0 ± 0.2 | 7 | 50/100 |
| 15 | 15.8 | 22.8 | 3.0 ± 0.2 | 6 | 50/100 |
| 20 | 19.1 | 26.1 | 3.5 ± 0.2 | 6 | 30/50/100 |
| 25 | 25.4 | 33.4 | 4.0 ± 0.2 | 5 | 30/50/100 |
| 30 | 31.8 | 39.8 | 4.0 ± 0.2 | 5 | 30/50/100 |
| 40 | 38.1 | 47.1 | 4.5 ± 0.2 | 5 | 30/50 |
| 50 | 50.8 | 60.8 | 5.0 ± 0.2 | 5 | 30/50 |
| 65 | 63.0 | 74.0 | 5.5 ± 0.2 | 5 | 30 |
