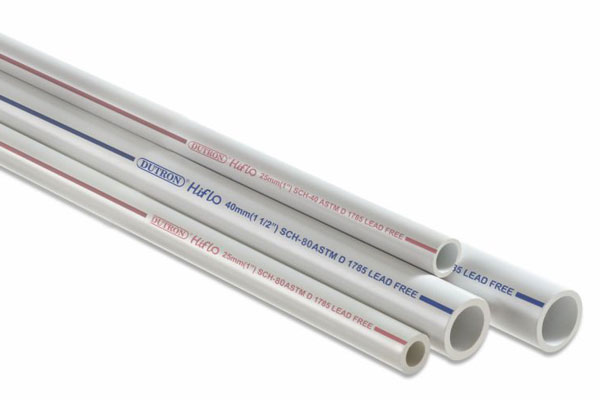

uPVC PLUMBING SYSTEM (PIPES)

Applications High pressure water distribution plumbing in residential, commercial and industrial buildings.
Key Features Complete range of pipes as per ASTM D1785
Excellent tensile and impact strength
Non Corrosive
Longer service life and economical-excellent replacement to GI Pipe system
No Scaling or deposition due to smooth surface
Easy installation, leak proof joints welded by solvent cement
100% Lead free hence completely hygienic
UV Stabilized hence ideal for outdoor application
Available sizes 15 mm to 150 mm O.D.
Pressure at 30°C Schedule 40 – 12.4kg/cm² to 41.4kg/cm²
Schedule 80 – 19.3kg/cm² to 58.6kg/cm²
Also Available High quality Solvent cement.

Standard Chart By Size

NOMINAL BORE MEAN OUTSIDE DIAMETER (mm) PVC SCHEDULE 40 PVC SCHEDULE 80
Wall Thickness Working Pressure at 23°C Wall Thickness Working Pressure at 23°C
(inch) (mm) (min.) (max.) (min.) (max.) (kg/cm²) (min.) (max.) (kg/cm²)
½ 15 21.2 21.5 2.8 3.3 41.4 3.7 4.2 58.6
¾ 20 26.6 26.8 2.9 3.4 33.1 3.9 4.4 47.6
1 25 33.3 33.6 3.4 3.9 31.1 4.6 5.0 43.4
32 42.0 42.3 3.6 4.1 25.5 4.9 5.4 35.9
40 48.1 48.4 3.7 4.2 22.8 5.1 5.7 32.4
2 50 60.2 60.6 3.9 4.4 19.3 5.5 6.2 27.6
63 72.8 73.2 5.2 5.8 20.7 7.0 7.8 29.0
3 75 88.7 89.1 5.5 6.1 17.9 7.6 8.5 25.5
4 100 114.1 114.5 6.0 6.7 15.2 8.6 9.6 22.1
6 150 168.3 168.5 7.1 7.9 12.4 11.0 12.3 19.3

Consumption of Solvent Cement:

Pipe (inch) ½” ¾” 1” 1¼” 1½” 2” 3” 4” 6”
Size (mm) 15 20 25 32 40 50 80 100 150
No of Joints/Ltr. 274 169 148 106 74 42 32 21 6

uPVC PLUMBING SYSTEM (FITTINGS)

Applications High pressure water distribution plumbing in residential, commercial and industrial buildings
Key Features All fittings as per SCH 80
Complete range of fittings as per ASTM D2467
Available sizes 15 mm to 100 mm O.D.
Also Available High quality Solvent cement.

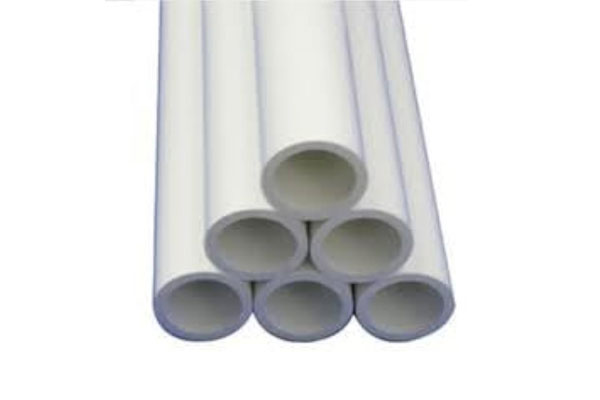

uPVC PRESSURE PIPES

Applications Irrigation in agriculture, potable water supply, conveying of water under pressure.
Key Features Light weight
Maintenance Free- Resistant to any type of corrosion
Safe for conveying potable water
Self-extinguishing quality
Conforming to IS 4985:2000
Available sizes 20 mm to 400 mm O.D.
Working Pressure Working Pressure 2.5kg/cm² to 10kg/cm²
Also Available In addition to solvent cement joints, pipes for convenient rubber ring fit joints to provide easy and leak proof joints.

Standard Chart By Size

IS 4985 : 2000 (Extract) Wall Thickness for working pressure classes (mm)
Outside diameter (mm) Tolerance on Outside diameter (mm) Class 1
2.5 kg/cm²
Class 2
4 kg/cm²
Class 3
6 kg/cm²
Class 5
10 kg/cm²
(min.) (max.) (min.) (max.) (min.) (min.) (min.) (max.)
20 +0.3 1.1 1.5
25 +0.3 1.4 1.8
32 +0.3 1.8 2.2
40 +0.3 1.4 4.8 2.2 2.7
50 +0.3 1.7 7.8 2.8 3.3
63 +0.3 1.5 1.9 2.2 2.7 2.8 3.3
75 +0.3 1.8 2.2 2.6 3.1 4.2 4.9
90 +0.3 1.9 1.7 2.1 2.6 3.1 3.7 5.0 5.7
110 +0.4 1.6 2.0 2.5 3.0 3.7 4.3 6.1 7.0
125 +0.5 1.8 2.2 2.9 3.4 4.3 6.0 6.9 8.0
140 +0.5 2.0 2.4 3.2 3.8 4.8 5.5 7.7 8.7
160 +0.5 2.3 2.8 3.7 4.3 5.4 6.2 8.8 9.9
180 +0.6 2.6 3.1 4.2 4.9 6.1 7.0 9.9 11.1
200 +0.6 2.9 3.4 4.6 5.3 6.8 7.7 11.0 12.3
225 +0.7 3.3 3.9 5.2 6.0 7.6 8.6 12.4 13.9
250 +0.8 3.6 4.2 5.7 6.5 8.5 9.6 13.8 15.4
280 +0.9 4.1 4.8 6.4 7.3 9.5 10.7 15.4 17.2
315 +1.0 4.6 5.3 7.2 8.2 10.7 12.0 17.3 19.3
355 +1.1 5.1 5.9 8.1 9.4 12.0 13.8 19.6 22.6
400 +1.2 5.8 6.7 9.1 10.5 13.5 15.6 22.0 25.3

uPVC PRESSURE FITTINGS

Applications Water supply in agriculture.
Types Elbow, Tee, Reducer, MTA (Male Threaded Adapter), FTA (Female Threaded Adapter), End Cap, Threaded End Cap, Reducer, Tail Piece, Flange, Coupler, Service Saddle
Available sizes 20 mm to 200 mm as per IS 7834
Specifications Available upon request.

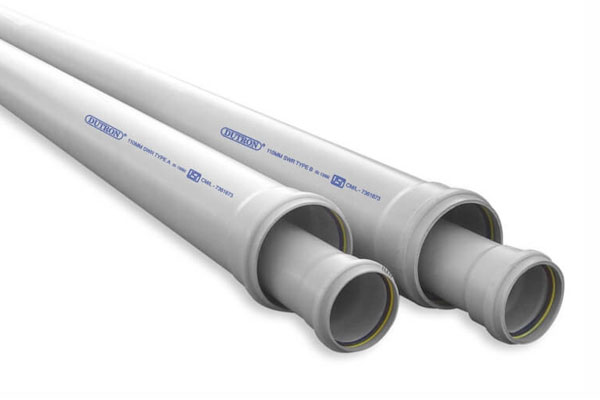

uPVC SWR PIPES

Applications Drainage of Soil, Waste, and Rainwater in residential, commercial and industrial buildings; Waste Water management systems.
Key Features Light weight
Resistant to any type of corrosion
Solvent joint (Pasting) as well as easy to install leak proof rubber ring joints
Complete range of pipes (IS 13592)
Available in different length to suit various needs, in single or double socket
Available sizes 75 mm to 160 mm O.D.

Standard Chart By Size

Size (mm) O.D (mm) Wall Thickness
(Type A) in mm
Wall Thickness
(Type B) in mm
Min. Max. Min. Max. Min. Max.
75 75.0 75.3 1.8 2.2 3.2 3.8
90 90.0 90.3 1.9 2.3 3.2 3.8
110 110.0 110.4 2.2 2.7 3.2 3.8
160 160.0 160.5 3.2 3.8 4.0 4.6

uPVC SWR FITTINGS

Applications SWR fittings for Soil, Waste and Rainwater applications in building.
Construction & waste water management.
Key Features UPA SWR fittings offer choice of solvent cement (pasting) jointing or rubber ring jointing
Types Bend, 45° Bend, Tee, Double Tee, “Y”, Double “Y”, Cleaning Pipe, Vent Cowl, Pipe Clip, Nani Trap, Square Gully Trap.
Available Sizes 63 mm to 160 mm as per IS 14735.
Specifications Available upon request.

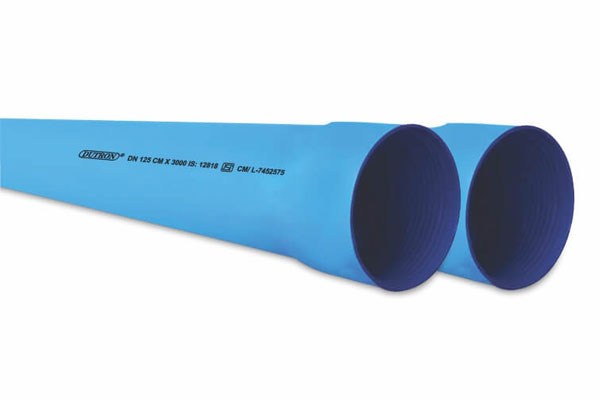

uPVC Casing Pipes

Applications As submersible casing pipes for deep (CM, above 80 meters depth) or shallow (CS, up to 80 meters depth) bore wells.
Key Features
  • Ideal for deep or shallow bore wells for clean water
  • Light weight
  • Non-toxic
  • Lowest friction
  • Good Impact resistance
  • Convenient 3 meters length and threaded ends for easy installation
  • Conforming to IS 12818
  • Slotted pipes are also available
Available Sizes 40 mm to 250 mm I.D.

Standard Chart By Size

Nominal Diameter (DN) Mean outer Diameter (d) of pipe (mm) Wall Thickness (mm)
Type – CM Type – CS
Inch mm Min Max Min Max Min Max
40 48.00 48.20 3.50 4.00
2 50 60.00 60.20 4.00 4.60
3 80 88.00 88.30 4.00 4.60
4 100 113.00 113.30 5.00 5.70 4.00 4.40
5 125 140.00 140.40 6.50 7.30 4.90 5.40
6 150 165.00 165.40 7.50 8.50 5.70 6.50
7 175 200.00 200.50 8.80 9.80 7.00 7.80
8 200 225.00 225.50 10.00 11.20 7.60 8.80
10 250 280.00 280.50 12.50 14.00 9.60 11.00

uPVC SDR 35

Available Sizes 110 mm to 180 mm O.D.
Key Features Convenient 6 meters length

uPVC SDR 52

Available Sizes 110 mm to 200 mm O.D.
Key Features Convenient 6 meters length

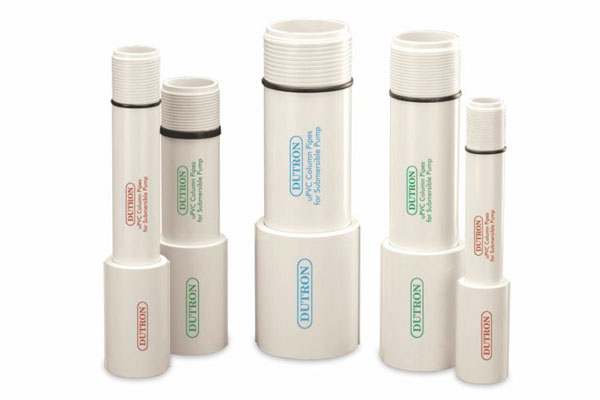

UPVC SUBMERSIBLE COLUMN PIPES

Applications With submersible pumps for water delivery under pressure from bore wells – Medium, Standard or Heavy types.
Key Features
  • Smooth inner surface – lowest friction loss – high flow rate
  • Safe use in vertical, horizontal and inclined positions
  • Accurate square threads at the end – very good pulling (tensile) strength
  • Complete system with top, bottom adapters and pump guard
  • Rubber ring sealing for leak proof joints

Available Sizes

25 mm to 100 mm I.D.

Hydrostatic Pressure

  • Medium 10kg/cm² to 15kg/cm²
  • Standard 15kg/cm² to 20kg/cm²
  • Heavy 26kg/cm² to 30kg/cm²

Standard Chart By Size

Range & Size Wall Thickness (mm)
I. D. O. D. Normal Thickening End
Medium (Blue) Standard (Red) Heavy (Green) Medium (Blue) Standard (Red) Heavy (Green)
25(1”) 33.5 – 33.5 3.5 – 3.7 4.0 – 4.2 4.9 – 5.2 4.1 – 4.3 4.9 – 5.2 5.8 – 6.1
32(1 ¼”) 42.0 – 42.2 3.7 – 3.9 4.0 – 4.2 5.0 – 5.3 4.5 – 4.7 5.0 – 5.3 6.4 – 6.8
40(1 ½“) 48.1 – 48.3 3.8 – 4.0 4.1 – 4.3 5.5 – 5.8 4.9 – 5.1 5.2 – 5.5 6.7 – 7.1
50(2”) 60.2 – 60.4 3.8 – 4.2 4.2 – 4.4 5.8 – 6.1 5.1 – 5.4 6.2 – 6.4 7.8 – 8.2
65(2 ½“) 75.8 – 76.2 4.3 – 4.7 4.4 – 4.8 6.4 – 6.7 5.6 – 6.0 6.2 – 6.4 9.0 – 9.3
75(3”) 88.7 – 88.9 4.5 – 4.9 5.0 – 5.6 7.4 – 7.7 6.1 – 6.5 7.0 – 7.5 9.8 – 10.2
100(4”) 114.0 – 114.3 5.0- 5.4 6.0 – 6.3 8.8 – 9.2 7.0 – 7.4 8.1 – 8.4 11.8 – 12.2

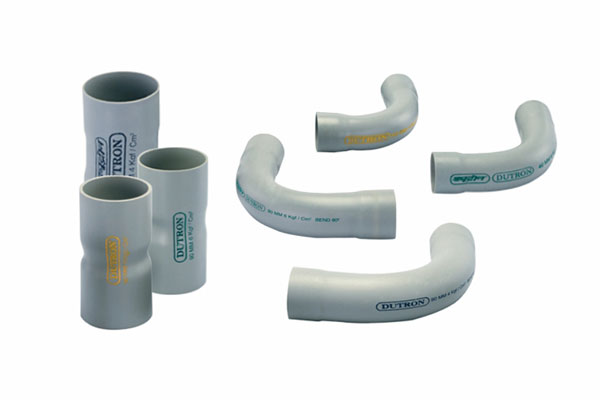

uPVC FABRICATED FITTINGS

Key Features
  • uPVC Pipe fabricated fittings are tailor made for customer specific requirements
  • The fittings are fabricated from pipes
Types Bends and Couplers or any other types.
Available sizes 20 mm to 400 mm

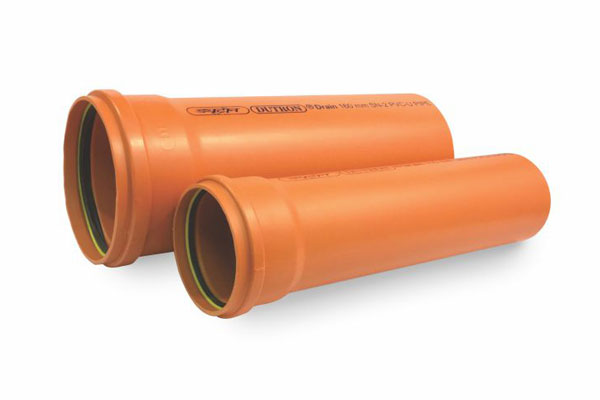

PVC-U DRAINAGE PIPES

Applications Underground drainage usage.
Key Features
  • Specially designed for underground non-pressure applications
  • Easy to install
  • Hygienic and leak proof
  • Smooth inner bore for better flow rate of water
  • Lower installation & maintenance cost as compared to conventional pipes
  • Excellent stiffness and impact resistance
  • Easy of jointing when using uPVC joints & fittings
Available sizes
  • Available in 3 meter & 6 meter length.
  • 110mm to 315mm.

Standard Chart By Size

Stiffness
SN (kN/m²)
SN 2 SN 4 SN 8
SDR 51 41 34
OD (mm) Wall Thickness in mm
Min. Max. Min. Max. Min. Max.
110 3.2 3.7
160 3.2 3.7 4.0 4.6 4.7 5.4
200 3.9 4.5 4.9 5.6 5.9 6.7
250 4.9 5.6 6.2 7.0 7.3 8.3
315 6.2 7.0 7.7 8.7 9.2 10.4
